Air compressors and air receivers
Screw and reciprocating compressors, dryers and filtration, with air receivers built to ASME Section VIII Div. 1.
Supplied, installed and maintained. Compressors, dryers and filtration are selected, sized, supplied and serviced. Air receivers are fabricated to code — see the pressure vessel data below.
Pressure vessel data
- Code of construction
- ASME Section VIII Div. 1
- Material of construction
- IS 2062
- Capacity (example build)
- 2.0 m³
- Dimensions
- Ø 1005 mm × 2750 mm H
- Maximum operating pressure
- 10.0 kg/cm²
- Design pressure
- 11.2 kg/cm²
- Hydro test pressure
- 15.0 kg/cm²
- Shell / dished end
- 8 mm / 10 mm
- External finish
- RAL 5007
- Documentation
- Hydro test report
Figures above are from a 2.0 m³ vertical receiver built for export in 2026. Capacity, dimensions and pressure rating are built to order.
Where it is used
Compressed air for pneumatic equipment, control systems, instruments, valves, cleaning systems and plant operations.
Major equipment
- Screw air compressor

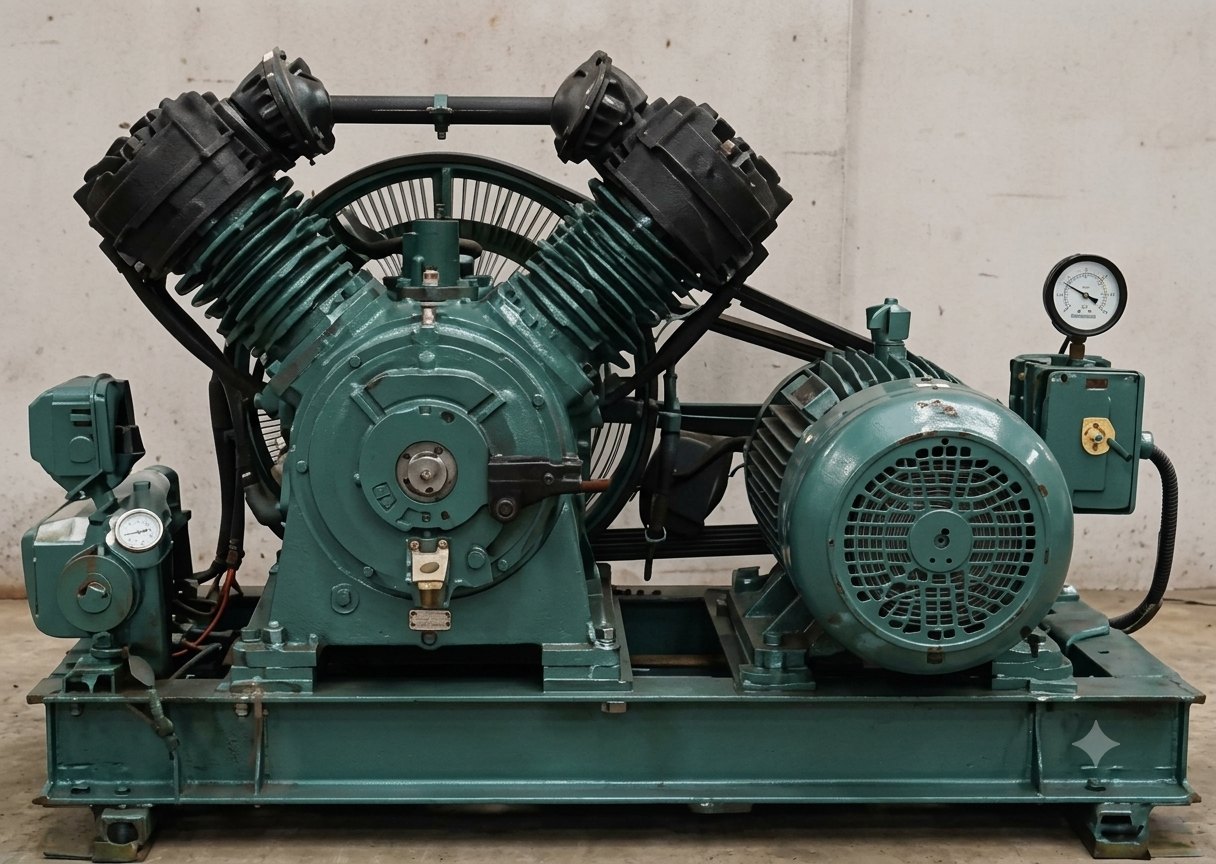

- Reciprocating air compressor
- Air receiver tank
- Air dryer
- Air filters
- After cooler
- Auto drain system
Build and duty
- Continuous compressed-air supply

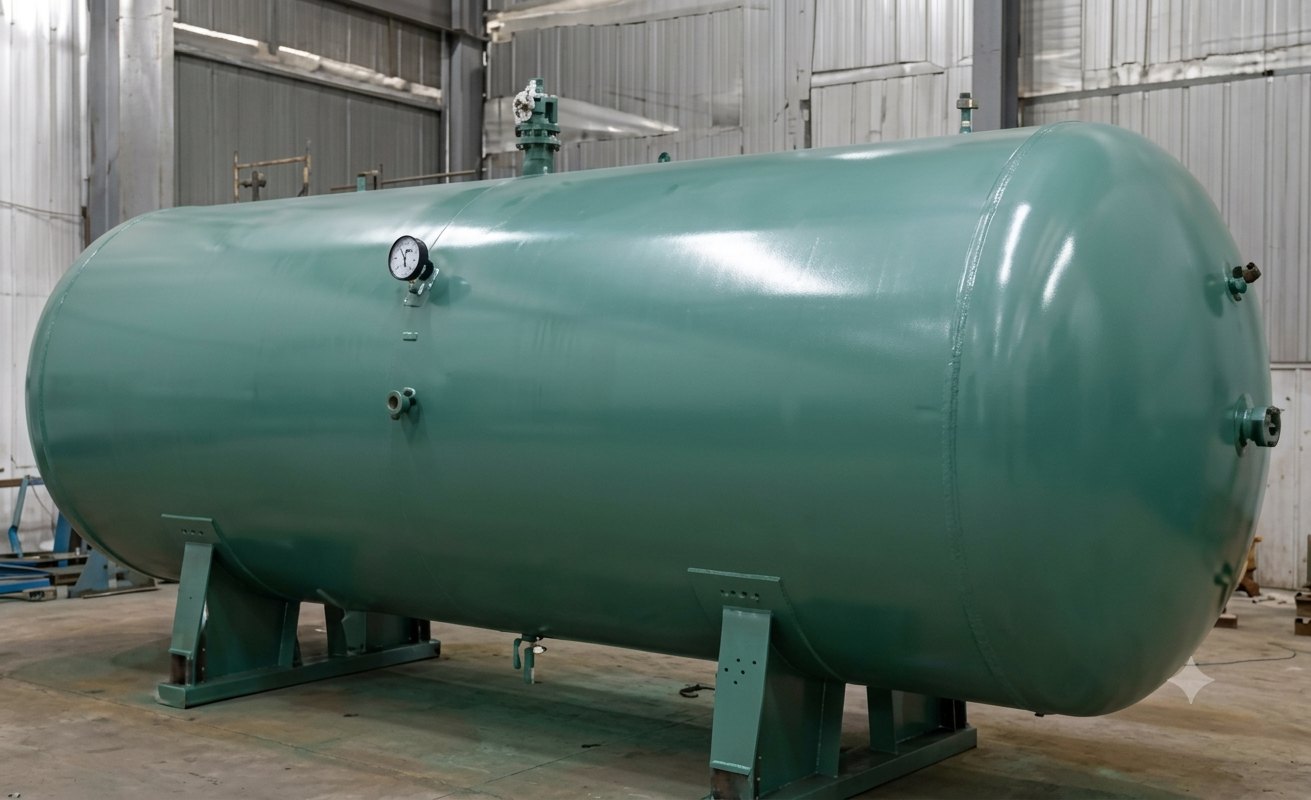

- Vertical and horizontal receivers
- A range of pressure and capacity ratings
- Instrument air and plant air systems
| Applications | Services |
|---|---|
| Industrial air compression | Compressor selection and sizing |
| Compressed air systems | Supply and installation |
| Instrument air systems | Commissioning |
| Plant air systems | Compressor servicing |
| Pneumatic conveying air | Preventive maintenance |
| Air receiver systems | Breakdown maintenance |
| Air drying and filtration | Air leakage testing |
| Air distribution systems | Air receiver inspection |
| Pressure management | Filter and oil replacement |
| Energy-efficient air systems | Air dryer servicing |
| Performance testing | |
| AMC and service support |
